Dual Tote Trailer

Printable Page

Description

The Chemguard Defender series of mobile foam trailers are built with unit integrity in mind. Constructed from structural steel rated at a tensile strength of over 36,000 lbs per square inch and finished off with high gloss polyurethane enamel, Defender Series trailers are economical, extremely durable, and corrosion resistant.

Designed and developed for extreme incident flexibility, the Defender series of trailers are offered with a wide variety of options giving you the ability to custom design your own unit to best fit the specific needs of your department or facility. When your needs require a large surplus of fire suppression foam, the Defender Series of tote trailers combine a unique mix of agility and performance to consistently provide storage, transport, and deployment in the harshest operating conditions possible.

Designed and developed for extreme incident flexibility, the Defender series of trailers are offered with a wide variety of options giving you the ability to custom design your own unit to best fit the specific needs of your department or facility. When your needs require a large surplus of fire suppression foam, the Defender Series of tote trailers combine a unique mix of agility and performance to consistently provide storage, transport, and deployment in the harshest operating conditions possible.

Standard Features

High Capacity Foam Concentrate Storage
Each Duel Tote Trailer is built to carry 550 or 660 gallons of concentrate. Please specify tote size during inquiry.
Fixed Master Stream Vertical Waterway
Pre-piped vertical waterway constructed from 4” Schedule 40 pipe running through a lever operated butterfly valve. The waterway is supplied by two 2-1/2” clapered Siamese or two Storz inlet connections mounted one connection point, dual 2-1/2” or Storz, on each side of the trailer.
Master Stream
Pre-piped single waterway brass monitor flows 1250 gpm with minimum friction loss. The Chemguard Brahma Monitor is designed for 360 degree rotation with positive lock and is built with stainless steel ball bearings at each swivel joint. A CEN Series Self-Educting foam nozzle comes standard in 350, 500, or 750 gpm configurations. Each single gallonage constant flow nozzle is adjustable from straight stream to a fog pattern.
Wheels and Tires
Standard with heavy duty 5-Star Polished Aluminum wheels with ST225-75-R15 tires.
Practical Plumbing
One standard direct nozzle concentrate pick-up connection runs from the front tote of the dual tote trailer. A quick action Cam-Lock connector with a remote valve at the monitor platform draws concentrate from the rear tote. The nozzle’s foam concentrate pick-up tube connection is compatible with all Chemguard tote tanks. An optional drum pick-up hose can provide the ability to access an additional concentrate supply, if needed, in an emergency situation.
Rapid Release Tote Locking System
Every model of trailers has our Rapid Release tote locking system as a standard feature. This enables the end user to quickly replace empty totes and reload with a full supply of concentrate. For added security we have also included two 3,335 lb heavy duty tie down straps for stability on the open road.
Stabilizing Jacks
All trailers are equipped with one 7,000 pound capacity drop-foot front jack and dual 5,000 pound capacity swing-down rear jacks for stabilization.
Equipment Storage
Large Diamond Plate aluminum hose bins located just above each fender is ideal storage for 2-1/2”, 3”, 4” or 5” hose.
Heavy Duty Construction
For added strength, the dual tote trailers are equipped with two heavy duty 6,000 lb load rated axels with the same E-Z Lube Bearings.
Electric Braking System
Each trailer comes standard with 12” x 2” electric brakes on both axles. The complete system contains an emergency break-away with battery, an electric brake controller to mount in the towing vehicle, and a brake actuator.
Finish
All Chemguard tote trailers are finished off with a durable red polyurethane enamel.
Safety
Standard non-skid on deck meets requirements of NFPA 1901.

Trailer Options


1 - Nozzle / Monitor / Valve
00 None
01 CEN350/CM1250B-4S W/4” BF VA. And 10-Position Lever
02 CEN500/CM1250B-4S W/4” BF VA And 10-Position Lever
03 CEN750/CM1250B-4S W/4” BF VA And 10-Position Lever
04 CEN1000/CM1250B-4S W/4” BF VA And 10-Position Lever
05* CEN1500(RANGER)/CM2000B W/4” BF VA. And 10-Position Lever
06 CEN350/CM1250B-4S W/4” BF VA. And Gear Operator
07 CEN500/CM1250B-4S W/4” BF VA And Gear Operator
08 CEN750/CM1250B-4S W/4” BF VA And Gear Operator
09 CEN1000/CM1250B-4S W/4” BF VA And Gear Operator
10* CEN1500(RANGER)/CM2000B W/4” BF VA. And Gear Operator
11 Other/Special Requires Engineering Approval

2 – Water Inlets
00 None
01 Single 4” NH(NST) Male With Cap - Each Side
02 Single 4” NH(NST) Female With Plug - Each Side
03 Single 4.5” NH(NST) Male With Cap - Each Side
04 Single 4.5” NH(NST) Female W/ Plug - Each Side
05 Single 4” Storz W/Cap Each Side
06 Single 5” Storz W/Cap Each Side
07* Single 6” Storz W/Cap Each Side
08 Two 2.5” NST Female Swivels With Clapper & Plugs Ea. Side
09 Two 2.5” NPSH Female Swivels W/ Clappers & Plugs Ea. Side
10 Other/Special Requires Engineering Approval

3 – Storage/Eductors - Left
00 Standard Aluminum Hose Bin No Eductor
01 Standard Aluminum Hose Bin 60 Gpm Pre-Piped Eductor
02 Standard Aluminum Hose Bin 95 Gpm Pre-Piped Eductor
03* Standard Aluminum Hose Bin 125 Gpm Pre-Piped Eductor
04* Standard Aluminum Hose Bin 250 Gpm Pre-Piped Eductor
05 Storage Cabinet In Lieu Of Hose Bin - Non-Locking
06 Storage Cabinet In Lieu Of Hose Bin – Locking
07 Other/Special Requires Engineering Approval

4 – Storage/Eductors - Right
00 Standard Aluminum Hose Bin No Eductor
01 Standard Aluminum Hose Bin 60 Gpm Pre-Piped Eductor
02 Standard Aluminum Hose Bin 95 Gpm Pre-Piped Eductor
03* Standard Aluminum Hose Bin 125 Gpm Pre-Piped Eductor
04* Standard Aluminum Hose Bin 250 Gpm Pre-Piped Eductor
05 Storage Cabinet In Lieu Of Hose Bin - Non-Locking
06 Storage Cabinet In Lieu Of Hose Bin – Locking
07 Other/Special Requires Engineering Approval

5 – Wheels/Brakes
00*** Alum. Star Wheels, Bsw Tires Electric Brakes
01*** Alum. Star Wheels, Bsw Tires Free Backing Hyd. Brakes
02 White Mod Wheels, Bsw Tires Electric Brakes
03 White Mod Wheels, Bsw Tires Free Backing Hyd. Brakes
04*** Galvanized Wheels, Bsw Tires Electric Brakes
05*** Galvanized Wheels, Bsw Tires Free Backing Hyd. Brakes
06 White Spoke Wheels, Bsw Tires Electric Brakes
07 White Spoke Wheels, Bsw Tires Free Backing Hyd. Brakes
08*** Alum. Mod Wheels, Bsw Tires Electric Brakes
09*** Alum. Mod Wheels, Bsw Tires Free Backing Hyd. Brakes

6 – Finish/Operator’s Platform
00 Red Urethane Enamel With Red Non-Skid Tape On Deck
01 Red Urethane Enamel With Brite Alum. Floorplate Deck
02 Red Urethane Enamel With Alum. Diamondback Decking
03 Red Epoxy W/Clearcoat And Red Non-Skid Tape On Deck
04 Red Epoxy W/Clearcoat And Brite Alum. Floorplate Deck
05 Red Epoxy W/Clearcoat And Alum. Diamondback Deck
06 Special Color/Finish With Matching Non-Skid Tape On Deck
07 Special Color/Finish With Brite Alum. Floorplate Deck
08 Special Color/Finish With Alum Diamonback Floor Deck

7 – Front (Tongue) Storage
00 None
01 6-Inch Deep Open Storage Area
02 Small Alum. A-Frame Toolbox
03 Large Alum. A-Frame Toolbox
04 Small Alum. A-Frame Toolbox With 6” Deep Open Storage
05 Large Alum. A-Frame Toolbox With 6” Deep Open Storage
06 6” Deep Storage W/ Alum. Floorplate Cover
07 6” Deep Storage W/ Alum. Diamondback Flooring Cover

8 – Trailer Coupler
00** A-Frame Coupler - 2” Ball Limited To Use W/275 Totes
01 A-Frame Coupler - 2-5/16” Ball Usable With All Tote Sizes
02 Adjustable Pintle-Eye - 3” Usable With All Tote Sizes
03 Adjust. Coupler - 2-5/16” Ball Usable With All Tote Sizes
04 Adjust. Clevis - 3/4” Dia. Pin Usable With All Tote Sizes
05 Special/Not Described Above Requires Engineering Approval

9 – Battery Maintenance Charger
00 Charges Through 6-Pin Connector-Std. W/Elect. Brakes
01 Solar Charger Added For Brake Battery
02 120 Vac Maintenance Charger Added For Brake Battery
03 None-Select For Free-Backing Hydraulic Brakes

Technical Drawings

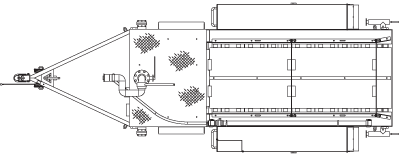

Dual Tote Trailer - Top

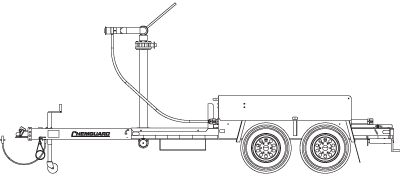

Dual Tote Trailer - Side

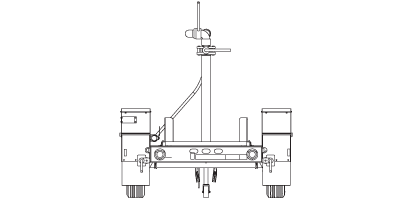

Dual Tote Trailer - Rear

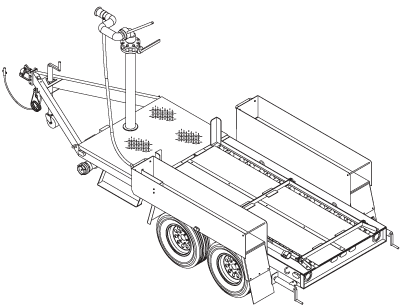

Dual Tote Trailer - Final Assembly
