Water-Powered Oscillating Monitors

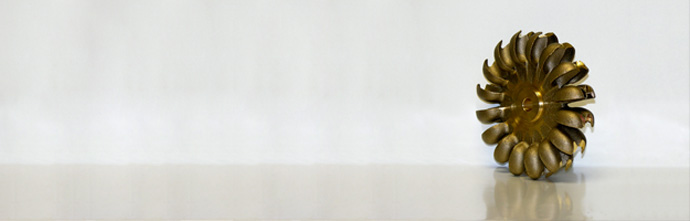

Chemguard's unique, UL listed, water-powered oscillating monitors provide rapid blanketing for combating fires in aircraft hangars, on helicopter decks, and in tank farms and other high-risk areas.  The activating force for Chemguard oscillating monitors comes directly from the water inlet to a turbine waterwheel.  Because we have eliminated the need for filtration and the risk of blocked filters or small orifices, our water-powered oscillating monitors inherently are the most reliable oscillating monitors in the industry.

Easy to set up and use, Chemguard low-maintenance water-powered oscillating monitors offer flow rates to 1,250 gallons per minute with a 3-inch waterway and 1,600 gallons per minute with a 4-inch waterway.  Users can specify a preset spray arc (such as covering an aircraft wing shadow area) at adjustable oscillation speeds (0 to 30 degrees per second).    No external wiring or hydraulic controls are required.


For more information, contact fire suppression customer support.
